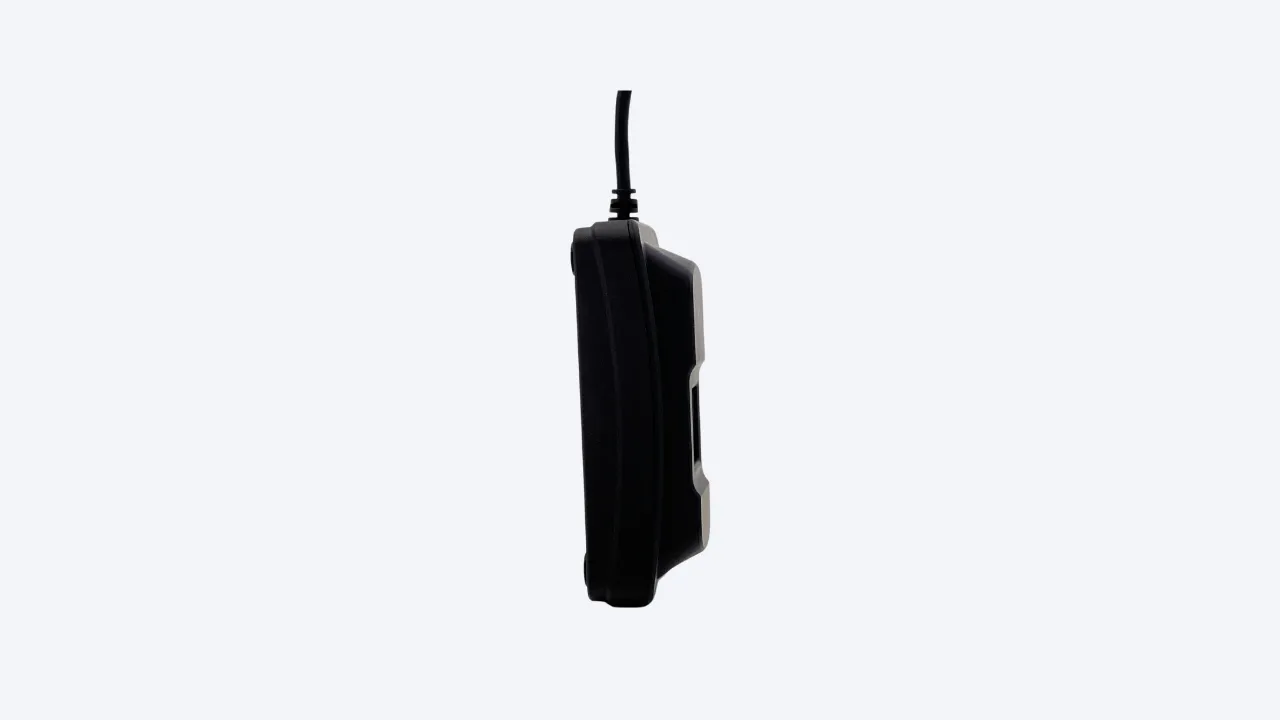

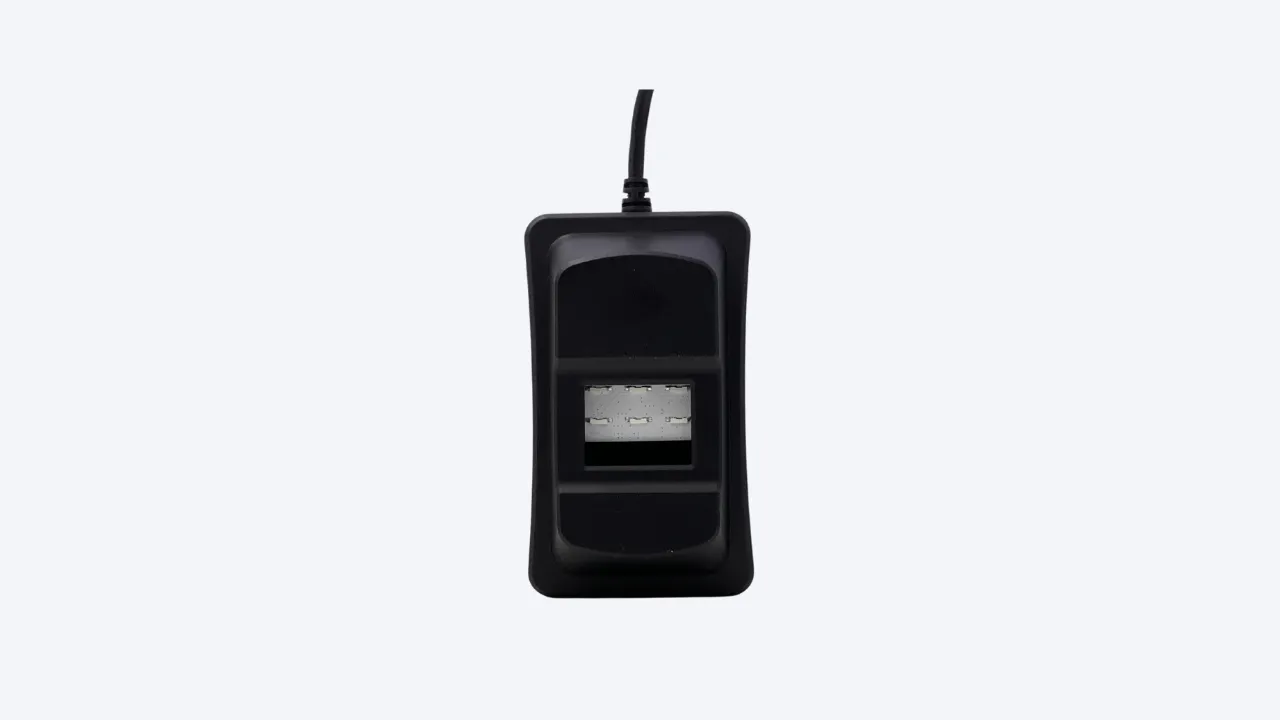

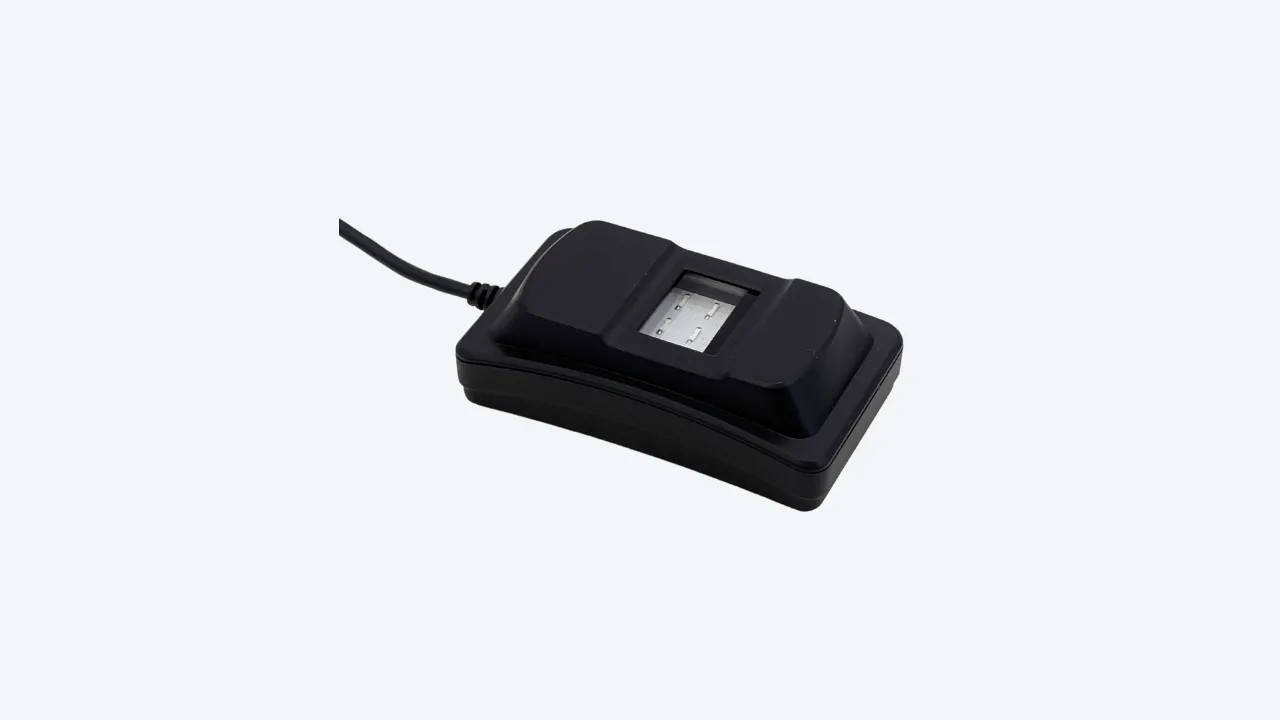

Max20 Series, FAP20 Optical Fingerprint Scanner

Maxvt Max20 Series, FAP20 Optical Fingerprint Scanner are FBI-PIV&FAP30 compliant optical fingerprint scanners, each built on corresponding OEM modules as specified in their technical documents:

All models provide mainstream Windows/Android/Linux SDK for easy integration into biometric authentication and individual identity verification scenarios, making them ideal for ID verification and IT security.

Inquire Now Download Brochure

OVERVIEW

Maxvt Max20 Series FAP20 Optical Fingerprint Scanners are an FBI-PIV&FAP20 compliant optical fingerprint scanners, each built on corresponding OEM modules as specified in their technical documents:

FEATURES

Certificates

FBI PIV and FBI Mobile ID FAP20 compliant

Biometric standard: ISO 19794-4, ANSI 381, WSQ, JPEG, RAW, BMP, MINEX III compliance

Live Fingerprint Detection

Machine-learning-based live finger detection technology to differentiate fake fingers

Auto-reject fake materials including silicon, paper, rubber and more

Easy Integration

SDKs available for Android, MS Windows and Linux compatible

UART&USB multiple interfaces

Advanced Algorithm

Template options: ISO 19794-2 & ANSI 378

Fingerprint template extractor & matcher are NIST MINEX III compliant

Value-added customised APIs for software integration

Dustproof and Waterproof

IP65 dustproof and waterproof

Parameter Comparison

Specification	Max20 OEM Module Max20m	Max20-2 OEM Module Max20m-2	Max20-1 OEM Module Max20m-1	Max20-2O OEM Module Max20m-2O
Product Size (L x W x H mm)	78 x 46 x 24	78.0 x 46.0 x 24.0	78 x 46 x 24	78.0 x 46.0 x 24.0
Sensor Area (L x W mm)	16 x 21	16.0 x 21.0	16 x 21	16.0 x 21.0
Weight	81g	81g	81g	81g
Sensor Type	Optical Sensor	Optical Sensor	Optical Sensor	Optical Sensor
Image Spec	FBI PIV&FAP20	FBI PIV&FAP20	FBI PIV&FAP20	FBI PIV&FAP20
Image Resolution	500 dpi	500 dpi	500 dpi	500 dpi
Image Size (W x H pixel)	300 x 400	300 x 400	300 x 400	300 x 400
Grey Scale	8bit, 256 levels	8bit, 256 levels	8bit, 256 levels	8bit, 256 levels
Image Format	WSQ, JPEG2000, RAW, BMP, ISO 19794-4, ANSI 381	RAW	WSQ, JPEG2000, RAW, BMP, ISO 19794-4, ANSI 381	RAW
Quality Score	NFIQ 1.0	NFIQ 1.0	NFIQ 1.0	NFIQ 1.0
Live Finger Detection	Yes	Yes	Yes	Yes
Latent Detection	Yes	Yes	Yes	Yes
Enrollment Time	≤0.5s (collect one image and upload by USB)	≤0.5s (collect one image and upload by USB)	≤0.5s (collect one image and upload by USB)	≤0.5s (collect one image and upload by USB)
Max. Encryption Capture Time (MOSIP)	/	/	≤3 seconds (Including capture, wsq, encryption and signing & transfer via USB)	≤3 seconds (Including capture, wsq, encryption and signing & transfer via USB)
FTM (MOSIP)	/	/	SBI 2.0-FTM	SBI 2.0-FTM supported security
Capturing Indication	Start of capturing: Lamp On; End of capturing: Lamp Off	Start of capturing: Lamp On; End of capturing: Lamp Off	Start of capturing: Lamp On; End of capturing: Lamp Off	Start of capturing: Lamp On; End of capturing: Lamp Off
Supply Voltage	DC5V±5% (USB powered)	DC5V±5% (USB powered)	DC5V±5% (USB powered)	DC5V±5% (USB powered)
Supply Current (USB powered)	≤200mA	≤200mA	≤200mA	≤200mA
Communication Interface	USB 2.0/3.0	USB 2.0	USB 2.0/3.0	USB 2.0
ESD Immunity (Sensor Surface)	±8kV contact discharge, ±15kV air discharge	±8kV contact discharge, ±15kV air discharge	±8kV contact discharge, ±15kV air discharge	±8kV contact discharge, ±15kV air discharge
Operating Temperature	-10℃ to +50℃	-10℃ to +50℃	-10℃ to +50℃	-10℃ to +50℃
Storage Temperature	-20℃ to +60℃	-20℃ to +60℃	-20℃ to +60℃	-20℃ to +60℃
Operating Humidity	20%RH～90%RH	20%RH～90%RH	20%RH～90%RH	20%RH～90%RH
Ingress Protection	IP65 (Sensor Surface)	IP65 (Sensor Surface)	IP65 (Sensor Surface)	IP65 (Sensor Surface)
Operating System Environment	Linux Kernel 4.15 or higher; Windows 7 or higher; Android 4.1 or higher	Linux Kernel 4.15 or higher; Windows 7 or higher; Android 4.1 or higher	Linux Kernel 4.15 or higher; Windows 7 or higher; Android 4.1 or higher	Linux Kernel 4.15 or higher; Windows 7 or higher; Android 4.1 or higher
